Grommets

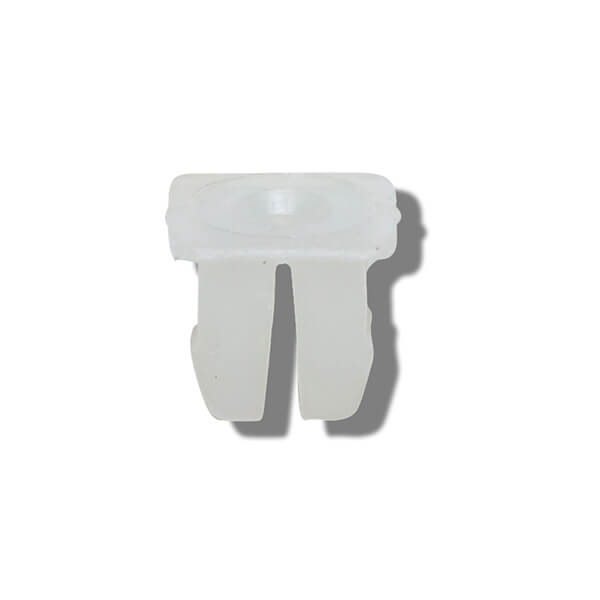

GMP injection moulded Grommets consist of a single structure, self-retaining, snap-in blind screw receptacle. Designed to provide insulation at fastening points while helping to spread load and provide a corrosion and vibration resistant connection, they eliminate potential cross threading and are simple to use.
Category: Plastic Fasteners
- DETAILS
- ORDER ENQUIRY
- Documents
DETAILS

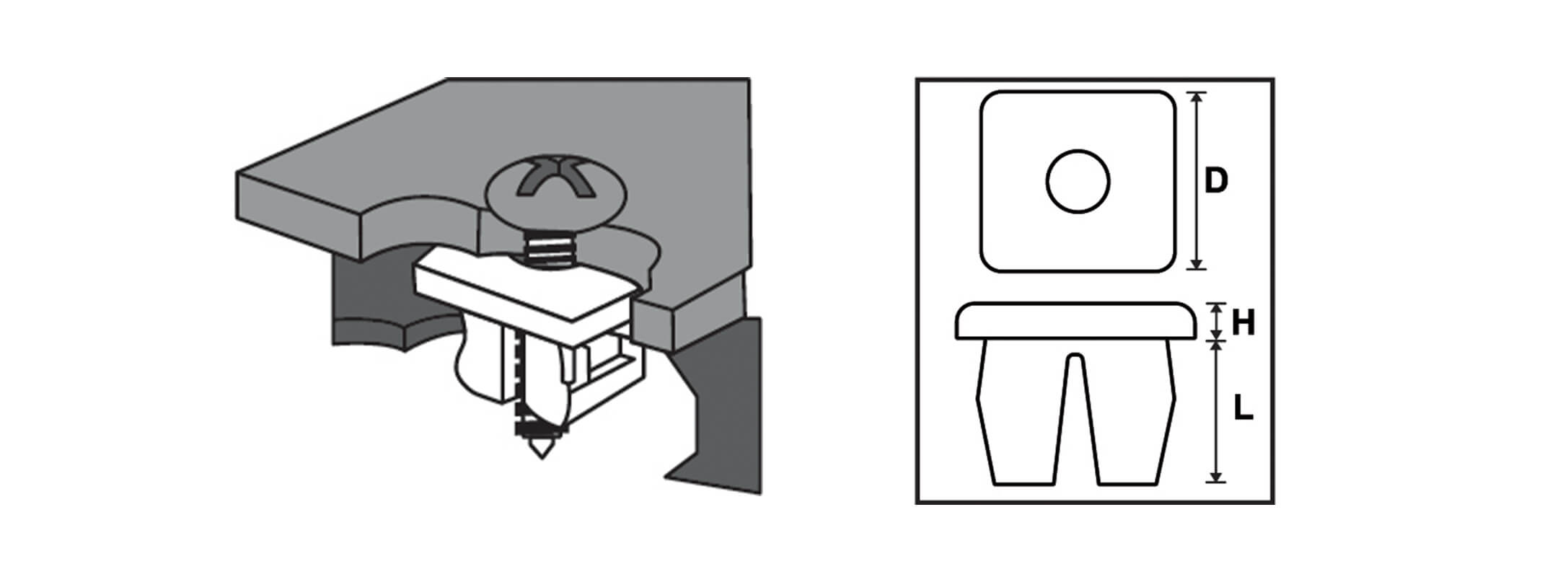

PART ID | ARTICLE NUMBER | COLOUR | HOLE SIZE MM | SCREW SIZE | APPROX GRIP RANGE | D | H | L | CARTON QTY |
---|---|---|---|---|---|---|---|---|---|
967800401 | 046-0001 | Natural | 9.4 – 9.6 | 10.0 | 0.8 – 2.7 | 17.0 | 1.9 | 6.8 | 4000 |
967800501 | 046-0002 | Natural | 9.4 – 9.6 | 14.0 | 0.8 – 2.7 | 17.3 | 1.9 | 6.8 | 8000 |
967800601 | 046-0007 | Natural | 6.7 – 7.1 | 8.0 | 0.8 – 3.9 | 9.5 | 0.8 | 8.1 | 5000 |
967800901 | 046-0010 | Natural | 6.9 – 7.3 | 8 or 10 | 0.8 – 3.9 | 10.4 | 0.8 | 8.1 | 4000 |
967801001 | 046-0012 | Natural | 6.9 – 7.3 | 8 or 10 | 0.8 – 3.9 | 12.7 | 3.3 | 8.1 | 4000 |
967801101 | 046-0013 | Natural | 8.3 – 8.7 | 14.0 | 0.8 – 3.9 | 14.2 | 1.6 | 8.1 | 10000 |
967801201 | 046-0026 | Natural | 9.0 – 9.2 | M5 | 0.8 – 2.0 | 14.1 | 2.0 | 6.8 | 10000 |
967801301 | 046-0030 | Natural | 8.5 – 8.7 | M5 | 0.9 – 1.5 | 12.0 | 2.0 | 8.0 | 4000 |
