Plastic Rivets
GMP Plastic Rivets are designed for the permanent locking of several interconnected panels and is designed to be installed by hand. Plastic Rivets are suitable for use with a wide variety of materials such as sheet metal, plastic sheets and fiberglass and come in a variety of sizes and colours ideal for the majority of fastening applications and requirements. If the rivet needs to be removed, driving a pin through the centre will make grommet removal possible. Once removed, a replacement rivet can be installed quickly and easily, reducing wasted time and effort.
DETAILS

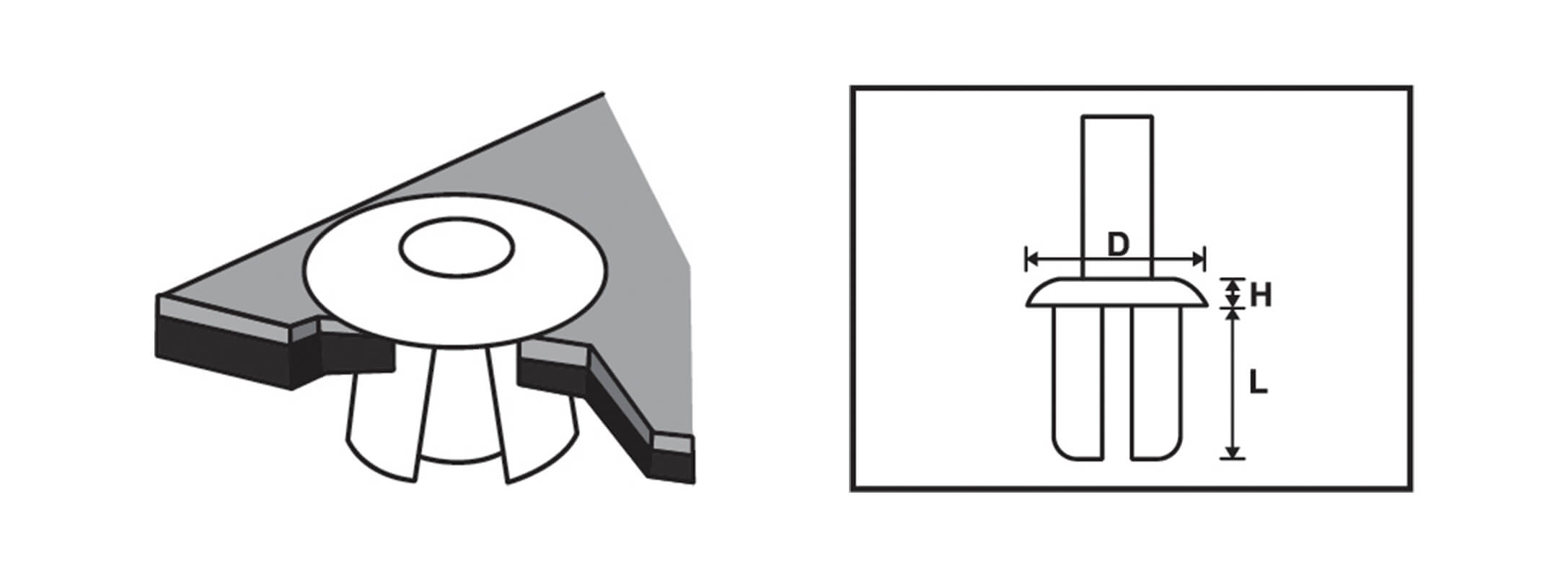

| PART ID | ARTICLE NUMBER | COLOUR | HOLE SIZE MM | PANEL THICKNESS | D | H | L | CARTON QTY |
|---|---|---|---|---|---|---|---|---|
| 967799501 | 016-0007 | Natural | 4.8 – 5.4 | 1.6 – 4.8 | 11.2 | 1.8 | 7.4 | 7000 |
| 967799601 | 016-0023 | White | ||||||
| 967799801 | 016-0033 | Black | ||||||
| 970479001 | 016-0031 | White | 4.8 – 5.4 | 4.6 – 7.4 | 11.2 | 2.0 | 10 | 5000 |
| 970463601 | 016-0051 | Black | 4.8 – 5.4 | 4.6 – 7.4 | 11.2 | 2.0 | 10 | 10000 |
| 967799901 | 016-0052 | Black | 5.0 – 5.1 | 1.0 – 1.5 | 9.5 | 1.5 | 5.0 | 10000 |
