Anchor Bushes
GMP Anchor Bushes are designed for use in applications where metal rods pass through panels. Once fitted, Anchor Bushes prevent rattling and squeaking by providing insulation. They also help support load and act as a bearing under moderate loads.
DETAILS

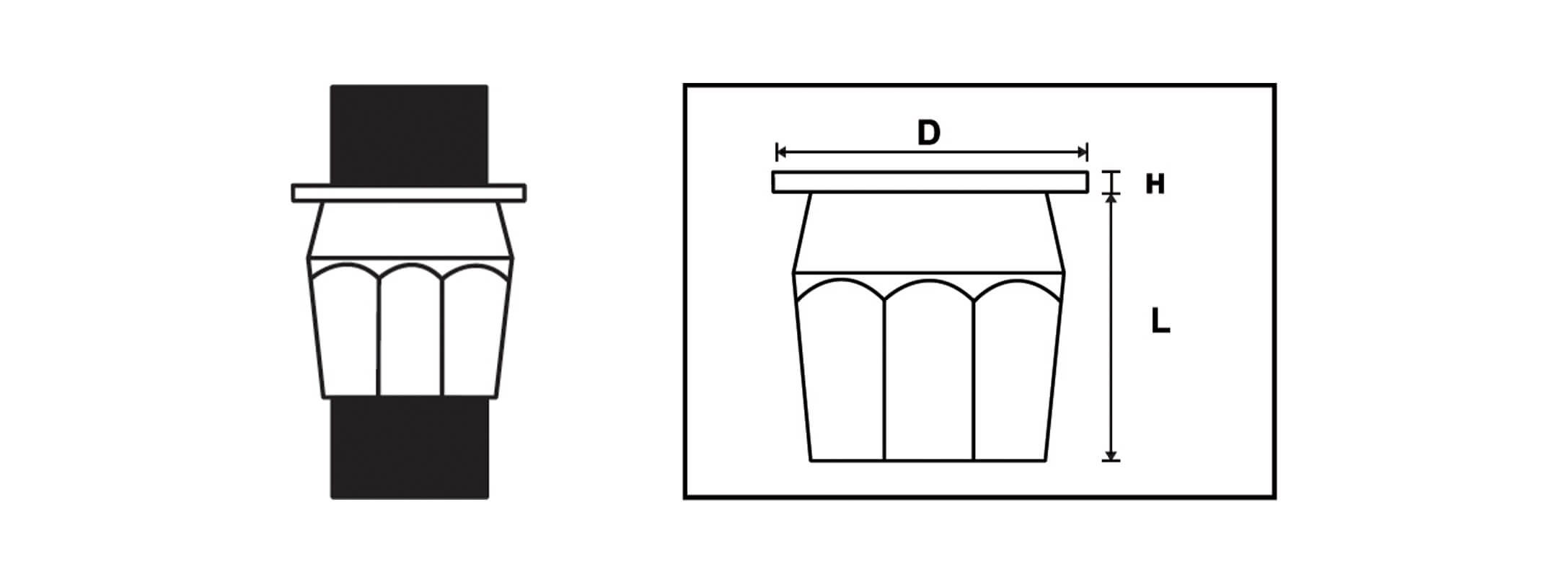

| PART ID | ARTICLE NUMBER | COLOUR | HOLE SIZE MM | STUD SIZE | APPROX GRIP RANGE | D | H | L | CARTON QTY |
|---|---|---|---|---|---|---|---|---|---|
| 967801801 | 086-0003 | Natural | 6.3 – 6.4 | 4.7 | 1.3 – 2.3 | 8.6 | 1.1 | 6.0 | 12000 |
| 967801901 | 086-0004 | Black | |||||||
| 967802001 | 086-0036 | Black | 7.1 – 7.2 | 5.4 | 0.9 – 3.3 | 9.0 | 1.0 | 6.3 | 10000 |
ORDER ENQUIRY
